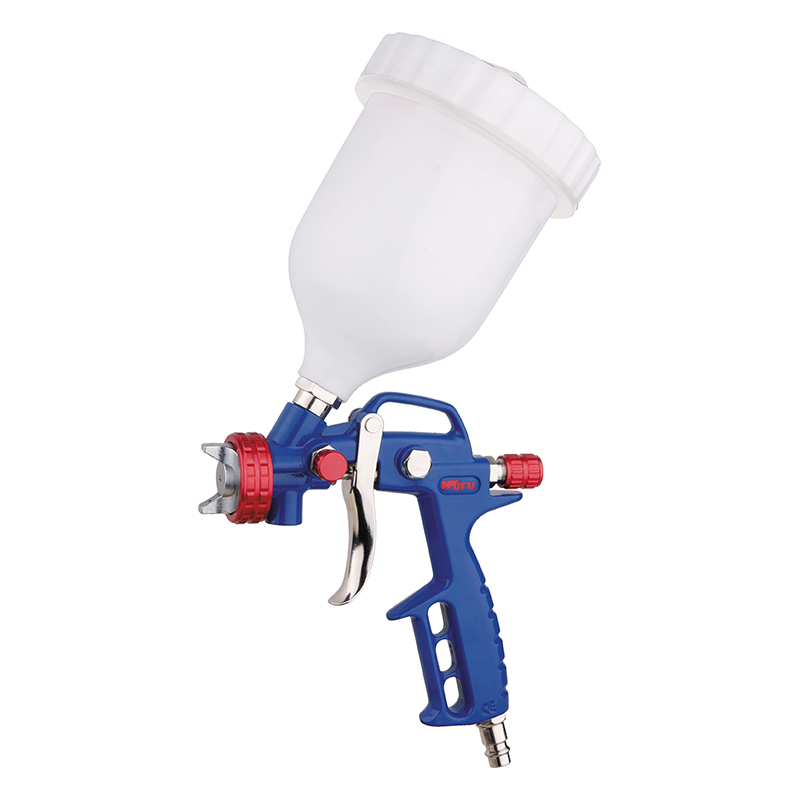

WF-21G

AIR GRAVITY SPRAY GUN

Application & Features:

* High transfer efficiency. Durable and stable performance.
* Reliable choice for medium viscosity painting of middle & prime coating on cars, machinery, furniture and etc.
* Colors available: polished original metal color, powder coating in any colors, chrome-plated, nickel-plated, different anodized colors.

Suitable for a variety of undercoating paints. Good application for undercoating of furniture, ships, building decoration etc.

Standard package: Color box, 20 pcs/ctn
Ctn Size: 67x47x27 cm
G.W./N.W.: 18/16 kgs
20ft: 6600
40HQ: 15100

How to Select a Spray Gun Nozzle Tip Size

What Size Spray Tip Should I Use with my Spray Gun?

There are many different things to consider when selecting the appropriate size spray tip for each job. The amount of information on the subject can be overwhelming, so we at the Bottom Paint Store have done our best to make this step easier for you.

There are three main factors to consider when determining the size tip that will produce the best results.

• First, examine the coating that will be sprayed. Put simply, heavier coatings will require a larger orifice size than lighter ones. For example, primers are usually thicker than the accompanying paint so you should use a 1.7 or 1.8 mm tip to prime most surfaces. Most painters will stay in the range of 1.2 to 2.0 mm unless the paint being applied is specialized. (See chart below.)
• The next thing to consider is your project surface area. This determines the appropriate fan width that your sprayer will produce, that is, the shape in which the product will leave the gun nozzle. Airless spray guns have more control over the fan width than conventional spray guns because the coating is forced through the tip without being atomized by air. This causes the tip to have a large impact on the fan width and shape. Most boat projects consist of large surfaces and so a wide fan will increase the spray coverage and also provide the ability to spray close to the surface without too much build up. Smaller surfaces will require a small fan width to reduce overspray. This also makes it possible to spray further away from the surface without too much falloff because the fan is more focused.
• Lastly, consider the spray gun that is being used. Make sure that the spray tip you plan on using will be supported by the gun. Most spray gun manufacturers will provide this information in their product overview.

• Common Spray Tip Sizes and Their Uses
  Tip size (mm)	Commonly Used for
  0.8	Parting Films – PVA – very fine mist
  1.2	Clear Coats – super fine finishes
  1.4	All Around Tip – clears, base coat, single stage paints
  1.6	General Purpose – light to heavy viscosity materials
  1.8	Primers – will apply primer quickly
  2.2 -2.5	Gel Coats and Resins – for thick resins and not paints
